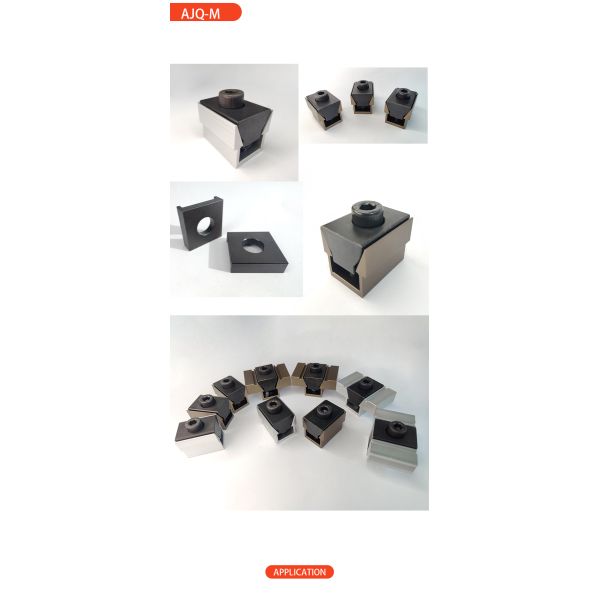

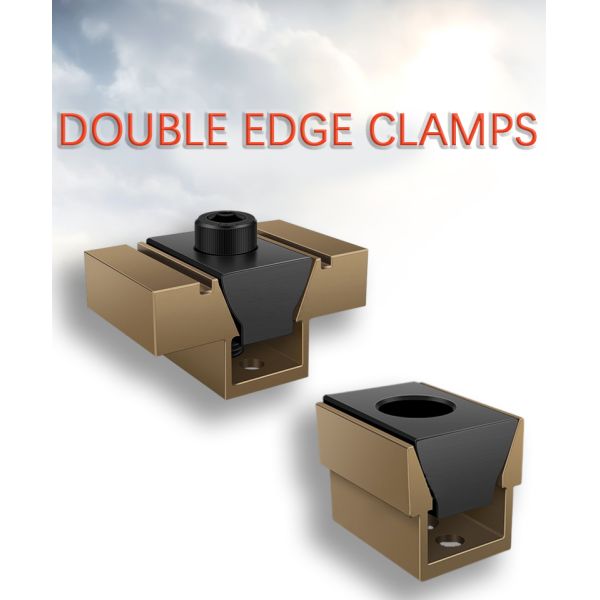

8.8n Anodized Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems

Name: 88n Anodized Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems
Brand: ADJIG
Price: 5 USD

Brand Name : ADJIG

Model Number : AJQ-M

Place of Origin : Chongqing, China

MOQ : 5

Price : 5 USD per item

Payment Terms : T/T,L/C

Supply Ability : Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.

Delivery Time : 7-10 days

Packaging Details : Carton/wooden crate

MODEL : AJQ-M

CLAMPING FORCE (N) : 8.8

TIGHTENING TORQUE (N.M) : 14.5

WEIGHT(g) : 115

MAIN BODY : 6061T6 ANODIZED FILM/7075 ANODIZED FILM

WEDGE BLOCK : SUN31L FERRIC OXIDE FILM

Contact Now

Precision Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems

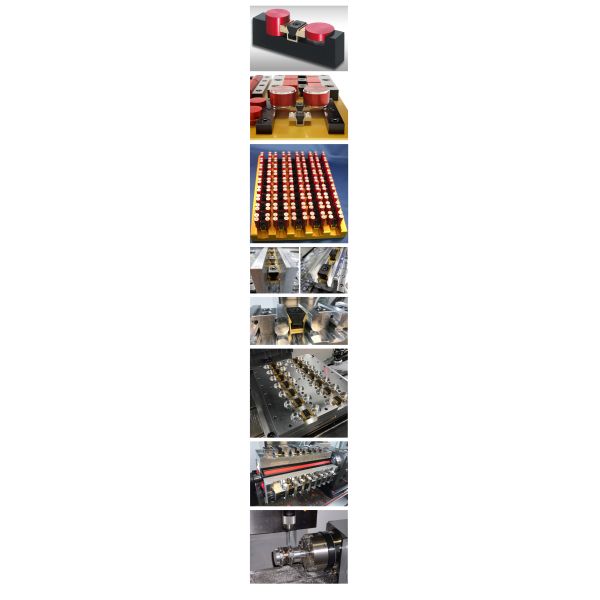

Fixtures generate powerful lateral forces through a single cam-driven screw, pushing workpieces into fixed rails or locators. Their low-profile design and synchronized jaw movement make them ideal for simultaneously clamping two or more workpieces in confined spaces. Steel jaws can be replaced with machinable aluminum inserts to accommodate custom installation requirements.

Clamping multiple parts | Secure two or more workpieces with a single screw

Back-to-back motion | Jaw synchronized movement to prevent part displacement

High-density fixture | Designed for crowded fixture layouts and small-batch part production

Replaceable jaws | Offers hardened or machinable options

Consistent and repeatable | Reliable and stable clamping force across batches

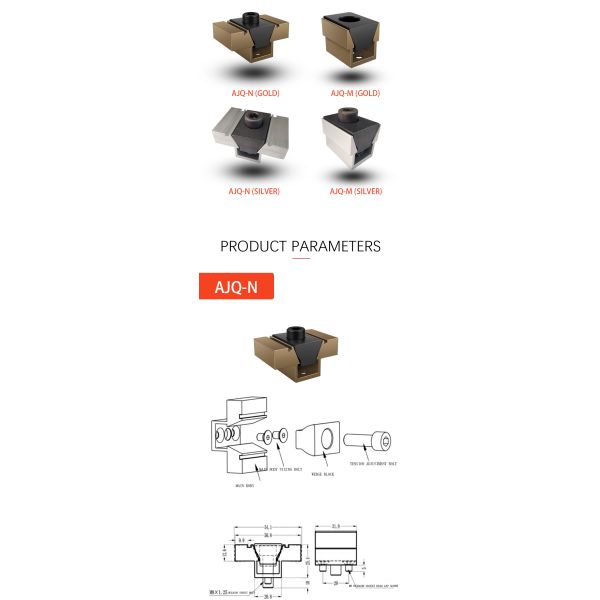

MODEL	CLAMPING FORCE (N)	TIGHTENING TORQUE (N.M)	WEIGHT(g)	MAIN BODY		WEDGE BLOCK
AJQ-N	8.8	14.5	85	6061T6 ANODIZED FILM	7075 ANODIZED FILM	SUN31L FERRIC OXIDE FILM
AJQ-M	8.8	14.5	115	6061T6 ANODIZED FILM	7075 ANODIZED FILM	SUN31L FERRIC OXIDE FILM
